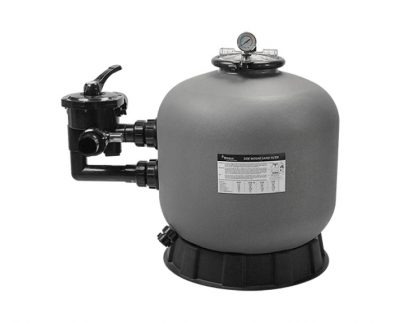

25 inch Swimming Pool Sand Filter Side Mount SP650


SP650 – 650mm Swimming pool sand filter for domestic above and below ground swimming pools, water features and general filter operations. Up to 15.30m³ per hour maximum flow rate.


Technical Specification

  • Brand: Emaux
  • EAN: 7091167564286
  • Flow Rate: 15.30m³/hr Max
  • Model: SP650
  • MPN: 88011705
  • Pressure Temp: 2 bar/40°C Max
  • Sand Media: 145kg
  • SKU:

Product Downloads


650mm 25 inch Side Mount Swimming Pool Sand Filter

Meet the SP650 from Emaux. Part of the ever-popular “SP” range this 650mm pool sand filter is known for its reliability and durability. It’s a great economical option for domestic pools. It can also be used with hot tubs and water features.

Made from a UV-resistant polyethylene this 650mm pool sand filter can operate outside for years without any problems. It also has a max operating pressure of 2.0 bar (28 psi) and a maximum temperature of 40°C. This means that it can be used with heating if required.

Its side-mount design allows for easy servicing and the universal union will fit both 50mm and 1.5-inch pipework making installation easy. This 25 inch swimming pool filter also features a six-position multiport valve and ABS laterals.

A filter of this size will need around 145kg of sand. However, we recommend using recycled glass filter media (RGFM) to get a crystal clear pool. By using the RGFM you could also save yourself some money in the long run as you use around 15% less media and it has a longer lifespan than traditional sand. The recommended size of media for this pool filter is 0.5-0.8mm. For more information check the product information leaflet and manual. For more technical information and advice please feel free to contact us.

Specification –

  • Max flow rate 15.30m³/hr
  • Filter Area 0.31m²
  • Media required 145kg
  • Suggested size of media : 0.5-1.0mm
  • Max operating pressure 28 psi / 2.0 bar
  • Max temperature of 40°C (104°F)
  • Universal standard of union connection provided
  • Suggested Installation: Domestic In-ground and above ground pool

Additional information




Sand Not Included, Sand Included
