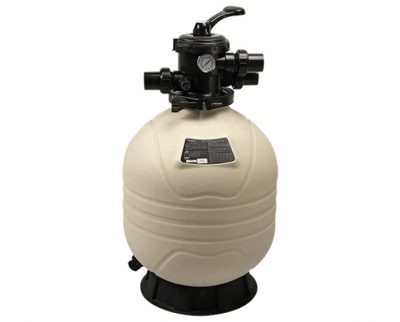

425mm 17 inch Heavy Duty Pool Filter Top Mount MFV17


Emaux innovative design and advanced technology offers superior filtration performance and crystal clear water. Max series filters are blown from one-piece high density polyethylene for its heavy duty performance and reliability.


Technical Specification

  • Brand: Emaux
  • EAN: 7091168940768
  • Flow Rate: 7.0m³/hr Max
  • Model: MFV17
  • MPN: 88012526
  • Pressure Temp: 2.8 bar/50°C Max
  • Sand Media: 40kg
  • SKU:

Product Downloads


425mm 17 inch Heavy Duty Top Mount Swimming Pool Filter

The MFV17 is a 17 inch heavy duty pool filter from Emaux’s MFV Max series range. The Max range of swimming pool filters is made from a single blown piece of HDPE. The HDPE material is known for being rugged and reliable. The UV resistant plastic can be used in the sun for years if required.

Thanks to the innovate design of the Max range the MFV17 has a maximum operating pressure of 2.8 bar (40 psi) and a maximum temperature of 50°C. Together it means this filter is ideally suited for use with spa pools or swimming pools that require heating.

Top Mount

This 17 inch heavy duty pool filter has a space-saving top mount design. The valve is attached to the top of the filter vessel with a unique one-piece clamp system. Because of this, it is easy to install and service with no tools needed. The 6-way multiport valve is made from sturdy ABS and marine-grade stainless steel which means the filter is non-reactive. Therefore it can be used with alternative disinfection systems such as salt or UV chlorination.

The MFV17 will need around 40kg of sand. However, we recommend using recycled glass filter media (RGFM) to get a crystal clear pool. By using the RGFM you could also save yourself some money in the long run as you use around 15% less media and it has a longer lifespan than traditional sand. The recommended size of media for this pool filter is 0.5-0.8mm.

To conclude the MFV17 is a great 17 inch heavy duty pool filter that would be perfect for both domestic and commercial use. As it is a heavy duty pool filter it can be used with heating and different disinfection systems and still perform reliably. For more information check the product information leaflet and manual. Please check the manual for acutal product dimensions. For more technical information and advice please feel free to contact us.

Specification –

  • Max flow rate 7.0m³/hr
  • Filter Area 0.14m²
  • Media required 40kg
  • Suggested size of media : 0.5-1.0mm
  • Max operating pressure 40 psi / 2.8 bar
  • Max temperature of 50°C (104°F)
  • Universal standard of union connection provided 1.5 inch / 50mm
  • Suggested Installation: Domestic In-ground and above ground pool

Additional information




Sand Not Included, Sand Included
